MPO/MTP connectors have two characteristics that enable them to change the path of optical signals (signal polarity). First, MPO/MTP connectors hold a group of fibers in fixed positions relative to some keying feature. Second, they can be used to construct patch cords in two different orientations,either key-up/key-up or key-up/key-down.
Features:
♦ High Performance in IL & RL
♦ 4,8,12 and 24 fiber connector terminations and assemblies
♦ Designed for low loss and standard loss SM and MM applications
♦ Economical solution for mass-termination of fiber
♦ Suitable for MPO/MTP application
♦ Ruggedized round cable, oval cable and bare ribbon options available
♦ Color coded housings available to differentiate fiber type, polish type and/or connector grade
Associated Standards:
♦ Meets IEC Standard 61754-7& JIS C5982
♦ Structured cabling per TIA-568-C
♦ Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
♦ Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP+ & QSFP28
Applications:
♦ Optical switching interframe connections
♦ High fiber density card edge access
♦ Array trunk cables
♦ Datacenter cabling

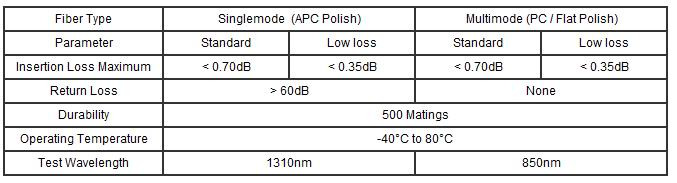

Technical Parameter:
Wave Thought Tech's MPO/MTP Casette

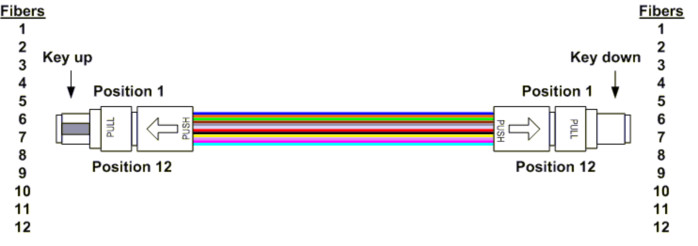

When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement on one connector is mirrored about the vertical axis on the other connector. For example, on connector A the blue fiber is to the left with the key up, while on connector B the blue fiber is to the right with the key up. Signals input on the left side of connector A will be output on the right side of connector B.
Key-up/Key-up of Mirror Signals About the Vertical Axis

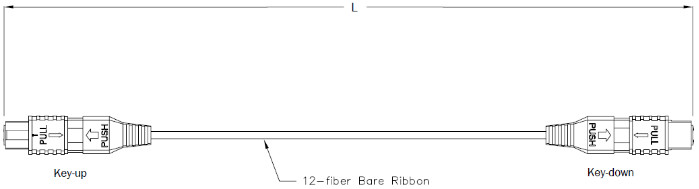

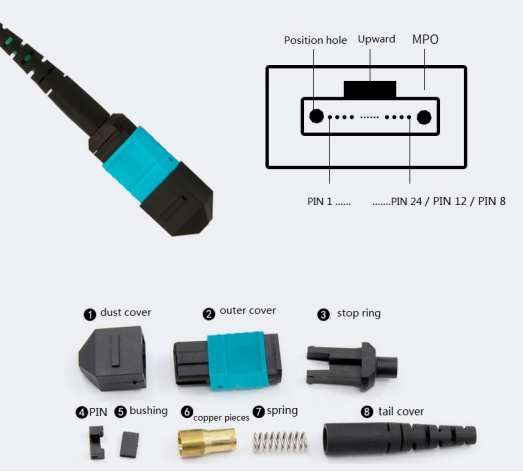

Assembly Structure Illustration:

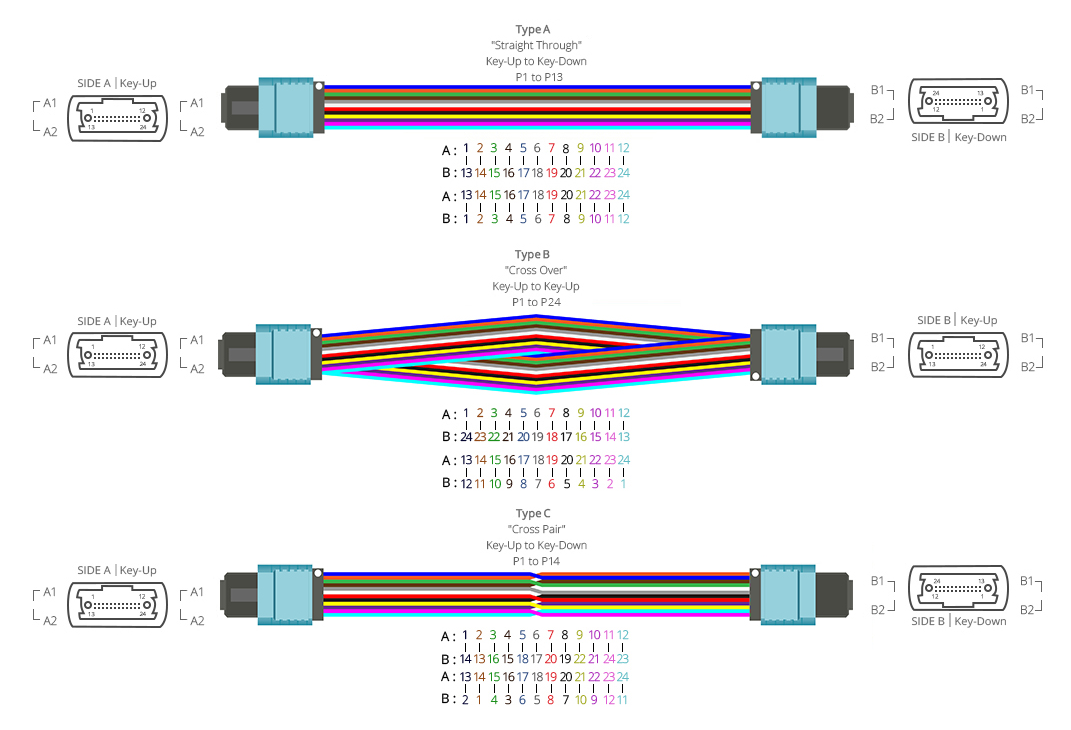

Major Polarities of Wave Thought Tech's MPO/MTP Connectors:
Type A, Type B and Type C

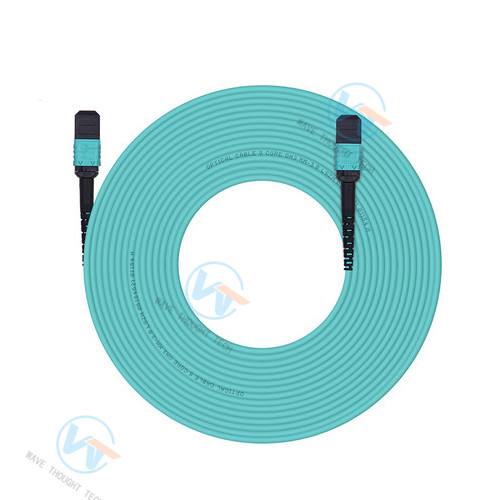

Product Picture:
